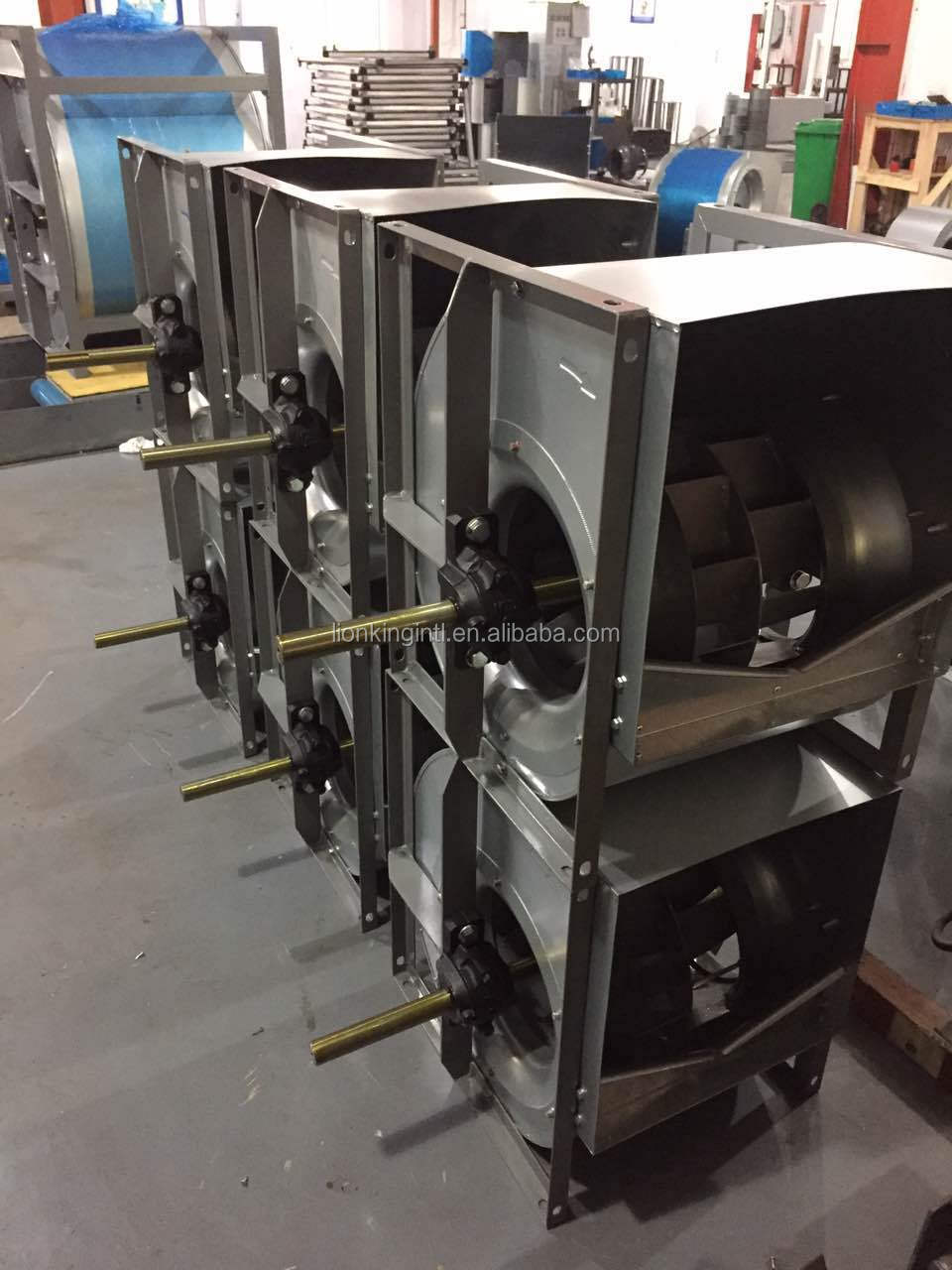

DIDW Backward Curved, Belt driven centrifugal fan with double inlet

Short Description:


Product Detail

Product Tags

Overview
Quick Details
Type:
Centrifugal Fan
Applicable Industries:
Hotels
Blade Material:
stainless steel
Mounting:
FREE STANDING
Place of Origin:
China
Brand Name:
LIONKING
Model Number:
LKQ
Voltage:
380V
Certification:
ce, RoHS, ISO
Warranty:
1 Year
After-sales Service Provided:
Online support, No overseas service provided
Impeller Diameter:
280~1000mm
Total Pressure Range:
120~3000Pa
Sound range:
80~110dB(A)
Driven type:
Belt drive
Material:
Galvanized Steel
Feature:
Large Volume
Product Description

DIDW Backward Curved, Belt driven centrifugal fan with double inlet



LKQ series of backward-curved single layer plate cerntrifugal fans are newly developed products which adopt backward plate blades, with good aerodynamic charateristices, high efficiency, good strength, low noise. The air volume range can reach 900-120000m³/h, greatly improving the efficiency.

Impeller Diameter:280-1000mm

Air volume Range:900-12000 m³/h

Total pressure Range:120-3000 Pa

Sound Rate: 80-110 dB(A)

Drive Type: Belt Drive

Model: 280,315,355,400,450,500,560,630,710,800,900,1000.

Applications: As ideal subsidiary equipment for various subsidiary conditioning units, heating, air-conditioning, cleansing and ventilating equipments.

Features:

Rugged construction

High flow rate

Compact scroll
