Centrifugal Inline fan, Direct Drive

Short Description:


Product Detail

Product Tags

Overview
Quick Details
Type:
Centrifugal Fan
Applicable Industries:
Hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Food Shop, Construction works , Food & Beverage Shops
Electric Current Type:
AC
Blade Material:
Mild Steel/galvanized steel
Mounting:
FREE STANDING
Place of Origin:
Zhejiang, China
Brand Name:
LIONKING
Model Number:
BKB/BKBS
Voltage:
380V
Certification:
ce, ISO
Warranty:
1 Year
After-sales Service Provided:
Online support, No overseas service provided
Product Description

Centrifugal Inline fan, Direct Drive

The BKB series duct fan is build-in double inlet forward curve centrifugal fans. Than fan is driven by LKB series external rotor motor. The BKB series includes 9 models. The air volume and total pressure range from 1000m³/h to 20000m³/h and 200Pa to 600Pa. Customers can request a different site on the noise, can be used with BKBS-type silencer box to meet the requirements of low noise. Pipe fan of series special motors can be configured through the three-phase voltage regulator, SCR voltage regulator, inverter and other means of speed, changing to meet system load requirements.

Impeller Diameter:200-500mm

Air volume Range:500-20000 m³/h

Total pressure Range: up to 600 Pa

Drive Type: Direct Drive

Model: 200,225,250,280,315,355,400,450,500

Installation Type: Seat installation, hoisting installation

Applications: Mute ventilation, purification ventilation

Company Information

 Zhejiang Lion King Ventilator Co., Ltd., a professional manufacturer of various axial fans, centrifugal fans, air-conditioning fans, engineering fans, mainly consists of Research and Development Department, Production Department, Sales Department, Testing Center, and Customer Service.
It is located in Taizhou City, Zhejiang Province, which is near to Shanghai and Ningbo with very convenient transportation system. The company has CNC lathes, CNC machining centers, CNC punch press, CNC bending machine, CNC spinning lathes, hydraulic press, dynamic balancing machine and other equipment.
The company has perfect comprehensive Testing Center, which includes facilities for air volume test, noise test, torque force and tensile force test, high and low temperature test, overspeed test , life test etc.
 Relying on its mold technology center and engineering technology center, the company has developed forward curved multi-blades centrifugal fan,backward centrifugal fan, voluteless fan, roof fan, axial flow fan, box-type fan series with more than 100 specifications of metal fans and low noise fans.
 The company attaches great importance to quality management, and was awarded the ISO9001 international quality system certification very early. At present, the “LION KING” brand has enjoyed great popularity and well-deserved reputation. Meanwhile, the products are also exported to many countries, and honored with  consistent high praise and recognition by domestic and foreign customers.
 The company always insists the business philosophy of “Safety First, Quality First”, and are keeping to serve all customers based on “ innovation, rapid response, and full services.”



Certifications



Production Flow

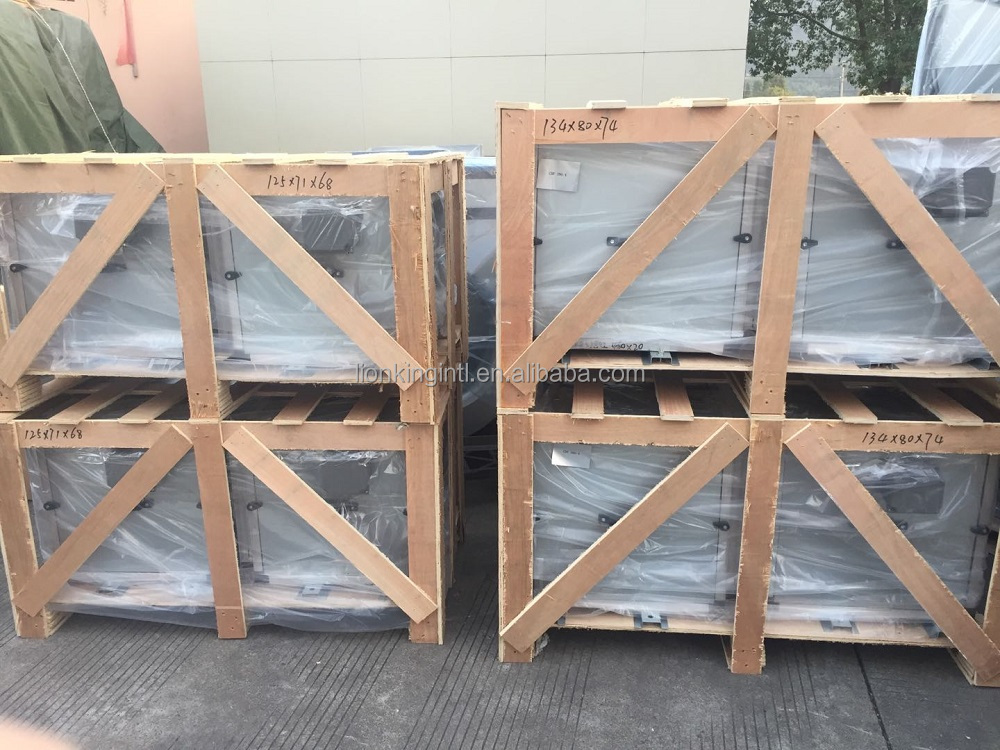

Packaging & Shipping
