Taizhou, China — Zhejiang Lion King Ventilator Co., Ltd., an experienced industrial fan manufacturer founded in 1994, introduces the reliable 9-26 series high-pressure centrifugal fan for global industrial projects. Widely exported to Morocco, West-Africa and other overseas markets, this blower delivers stable high-pressure airflow for forced ventilation and material conveying processes.

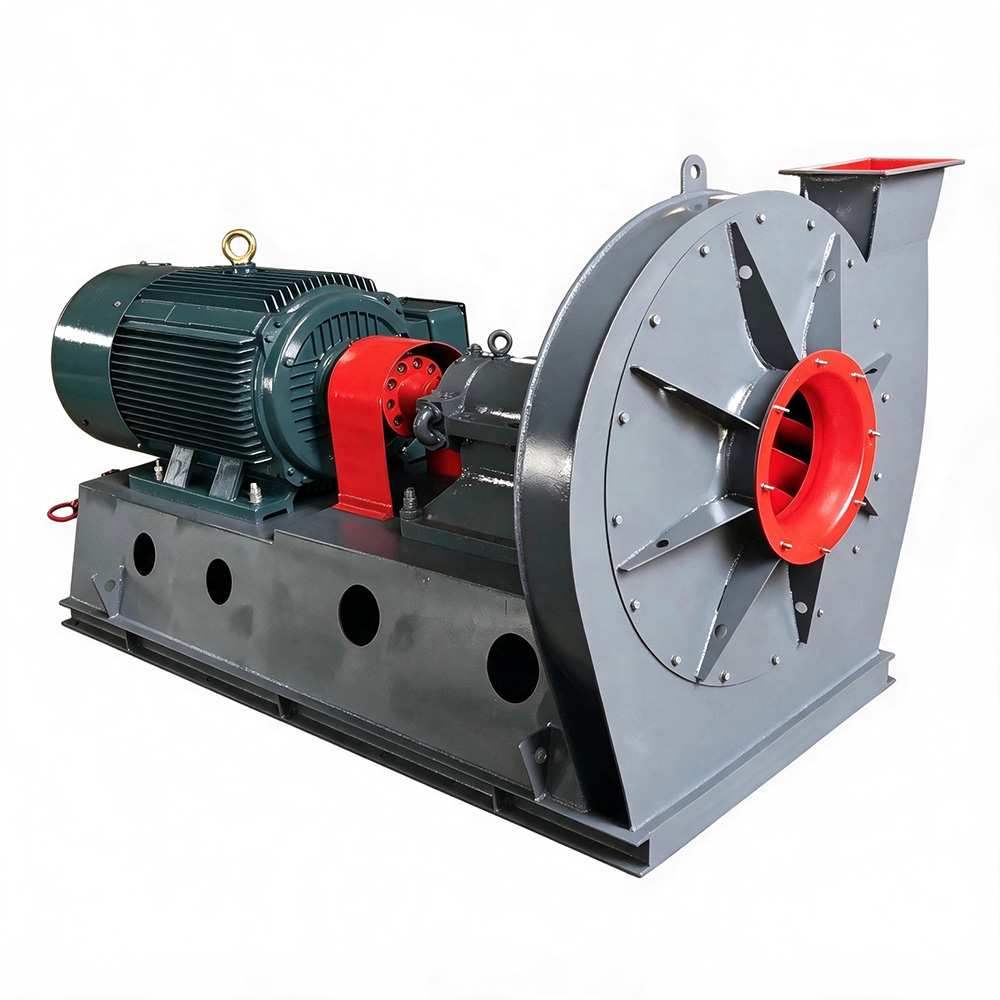

The 9-26 high-pressure centrifugal fan is single-inlet design, available in Type-A direct-coupled drive for small sizes and Type-D coupling-driven for larger units. It handles non-corrosive, non-self-igniting gas without viscous substances. The allowable medium temperature shall not exceed 80°C, with dust and hard-particle content ≤150 mg/m³. Typical application fields cover metallurgy, glass, ceramics, electroplating, battery production, grain & feed processing, mineral powder and plastic pneumatic conveying.
Key Product Advantages
✅ High-pressure output for high-resistance duct systems and material transportation ✅ Strict dynamic balance calibration for smooth, low-vibration continuous-run performance ✅ Flexible configuration: carbon steel as standard; stainless-steel casing and explosion-proof motor are optional ✅ Support CW / CCW rotation and multiple outlet angles ✅ Customizable for 50Hz / 60Hz overseas power supply ✅ Complete documentation including performance curve, installation drawing and operation manual
Our team is familiar with Moroccan import formalities. We can provide COC certificate for customs clearance. Flexible payment terms such as T/T and L/C at sight are acceptable for bulk orders.
Main Performance Data (9-26-D Model Reference)
|
No. |
Speed(r/min) |
Motor(kW-pole) |
Airflow(m³/h) |
Total Pressure(Pa) |
| 7.1D | 2900 | 75-2 | 12292-14634 | 12427-12078 |
| 8D | 1450 | 30-4 | 13001-13848 | 3834-3294 |
| 10D | 1450 | 75-4 | 23612-30052 | 5760-5920 |
| 12.5D | 960 | 75-6 | 33309-38860 | 3785-3450 |
Overall & Installation Dimensions for 9-26-D Fan (Unit: mm)
|
No. |
A |
B |
C |
D |
E |
F |
φ1 |
φ2 |
G |
H |
Remarks |
| 7.1D | 1900 | 900 | 228 | 348 | 310 | 430 | 400 | 465 | 630 | 720 | 75KW-2P |
| 8D | 1600 | 1100 | 256 | 392 | 336 | 470 | 450 | 510 | 720 | 800 | 30KW-4P |
| 9D | 1800 | 1260 | 290 | 440 | 370 | 520 | 500 | 560 | 810 | 900 | 30KW-4P |
| 10D | 2000 | 1350 | 320 | 490 | 400 | 570 | 560 | 620 | 900 | 1000 | 55KW-4P |
| 11.2D | 2100 | 1600 | 360 | 550 | 440 | 630 | 630 | 665 | 1000 | 1100 | 37KW-6P |
| 12.5D | 2250 | 1830 | 400 | 613 | 500 | 715 | 700 | 770 | 1120 | 1200 | 45KW-6P |
Full-range parameters and dimension drawings for Type-A models (4A-6.3A) are available upon request.
About Zhejiang Lion King Ventilator Co., Ltd.
Since 1994, Lion King Ventilator has specialized in manufacturing centrifugal fans, axial fans, smoke-exhaust fans, PPV rescue blowers and fire-rescue air cushions. Our factory is equipped with CNC processing equipment and a complete airflow-testing laboratory. We have rich experience serving government and commercial projects worldwide.
If you are sourcing high-pressure blowers, please share your required model, airflow, total pressure or working conditions. Our sales team will send competitive quotation and full catalog promptly.
Contact Megan Chan - General Sales Manager WhatsApp: +86 18167069821 Email: lionking8@lkfan.com Website: www.lionkingfan.com Address: No. 688, Yangsi Road, Zhang’an, Jiaojiang District, Taizhou City, Zhejiang Province, China
